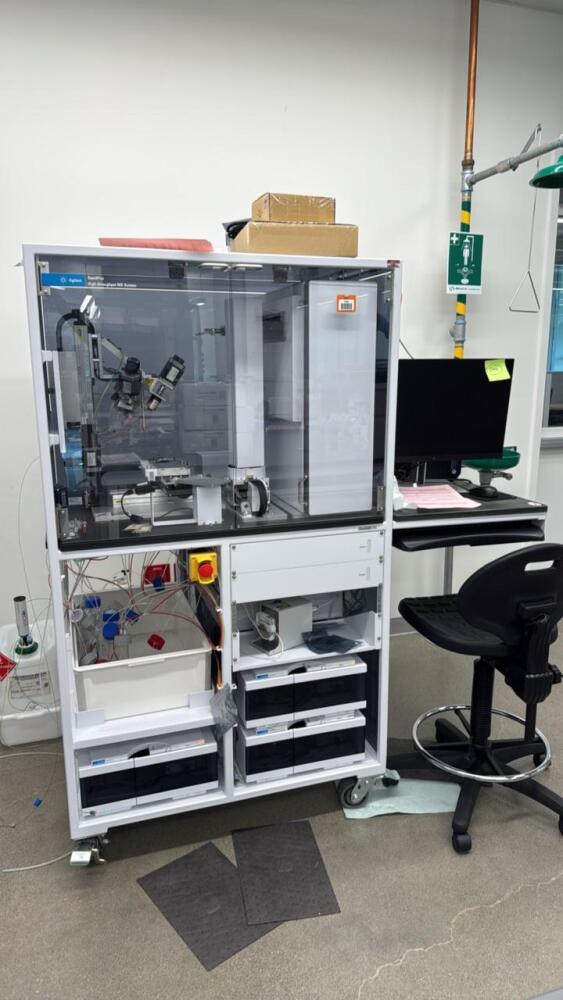

Agilent RapidFire 400 Automated SPE System with three 1260 Infinity II Quaternary Pumps (G7111A) and integrated RapidFire Robot Handler (G9532A), sample throughput up to 400 samples/hour, accommodates 96, 384, and 1536-well plate formats, pump flow rate 0.001–10 mL/min, 600 bar max pressure, power 100–240V, system dimensions approximately 48in x 26in x 72in, robot arm serial SG2231M1102, pump serial numbers DEAEX03876, DEAEX03877, DEAEX013463.
Category: Robotic Automated Liquid Handling and Sample Processing Workstation
Make: Agilent
Model: RapidFire 400 Automated SPE System

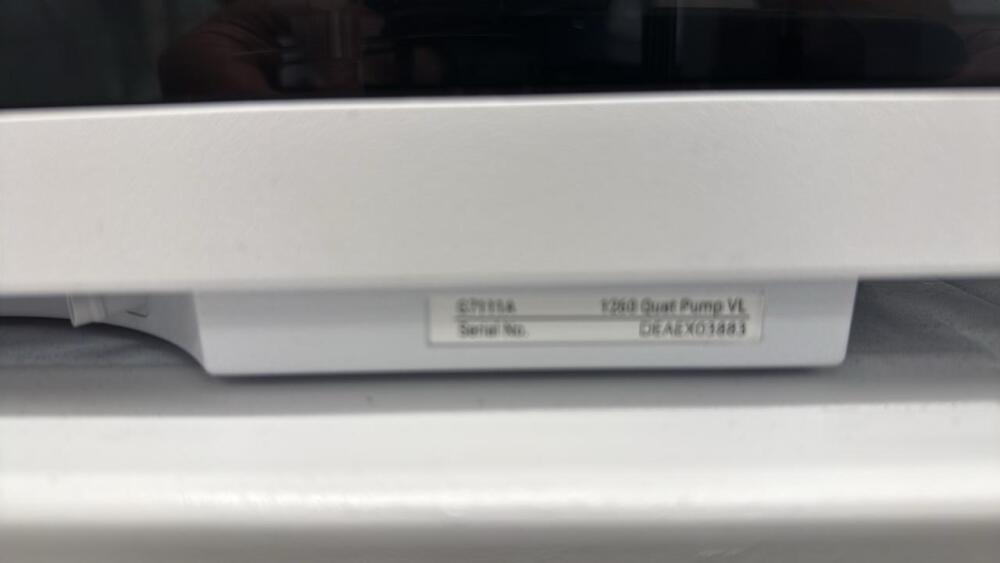

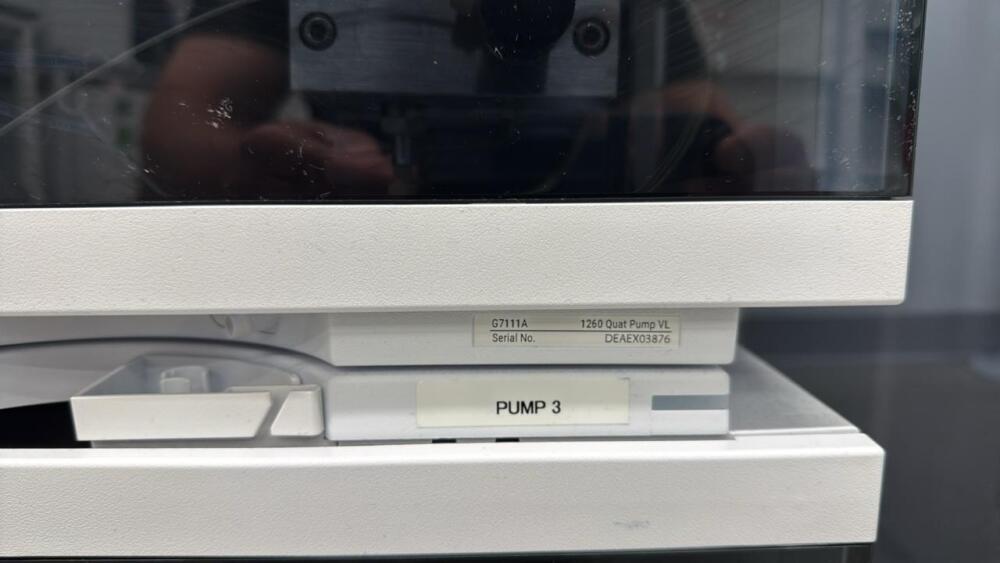

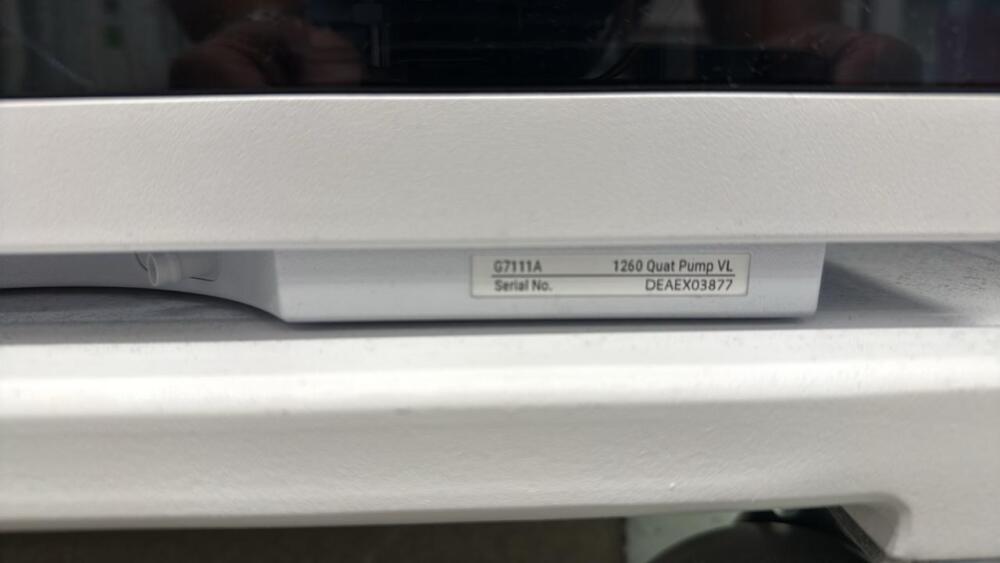

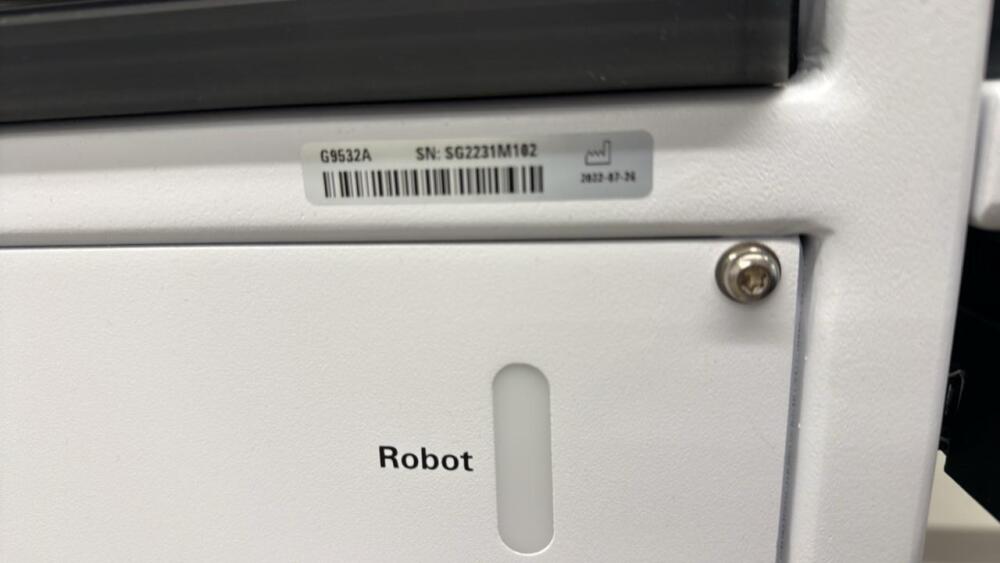

Serial Number: DEAEX03876, DEAEX03877, DEAEX013463 (Pumps), SG2231M1102 (Robot)
Included Modules/Subsystems: 3x Agilent 1260 Infinity II Quaternary Pumps (G7111A), RapidFire 400 Robot Handler (G9532A)
Compatible Plate Formats: 96, 384, 1536-well plates
Pump Flow Range: 0.001 to 10 mL/min
Maximum Pressure: 600 bar (8700 psi)
Power Requirements: 100–240V, 50/60Hz
Dimensions (W x D x H): 48in x 26in x 72in (122 x 66 x 183 cm) approx.
Weight: ~500 lbs (227 kg) (approximate)

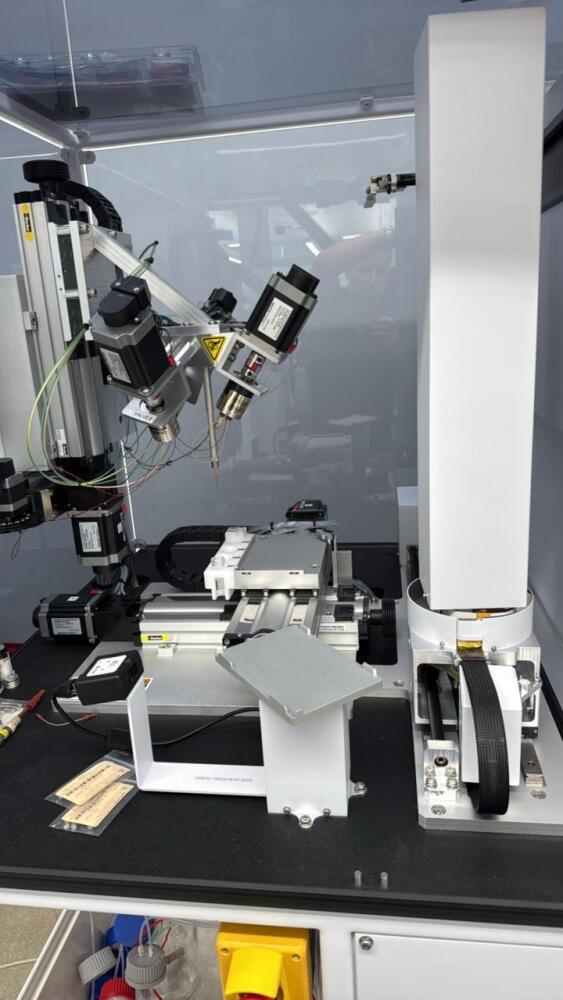

Robot Arm Model: G9532A

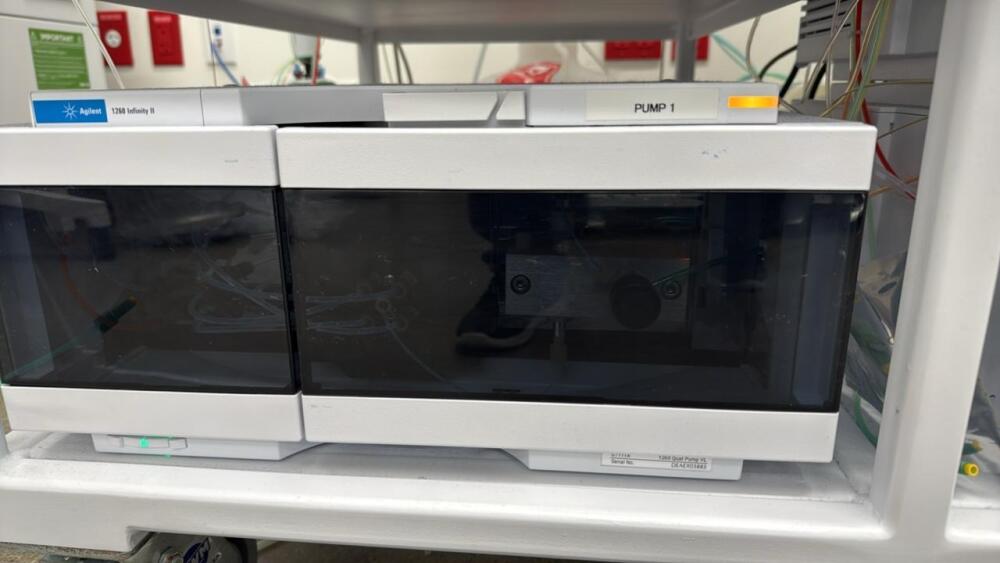

HPLC Make/Model: Agilent 1260 Infinity II Quaternary Pump VL (G7111A)
Pump Type: Quaternary
Pump Flow Rate: 0.001–10 mL/min
Pressure Limit: 600 bar (8700 psi)
