Category: Real-Time PCR System
Make: Bio-Rad

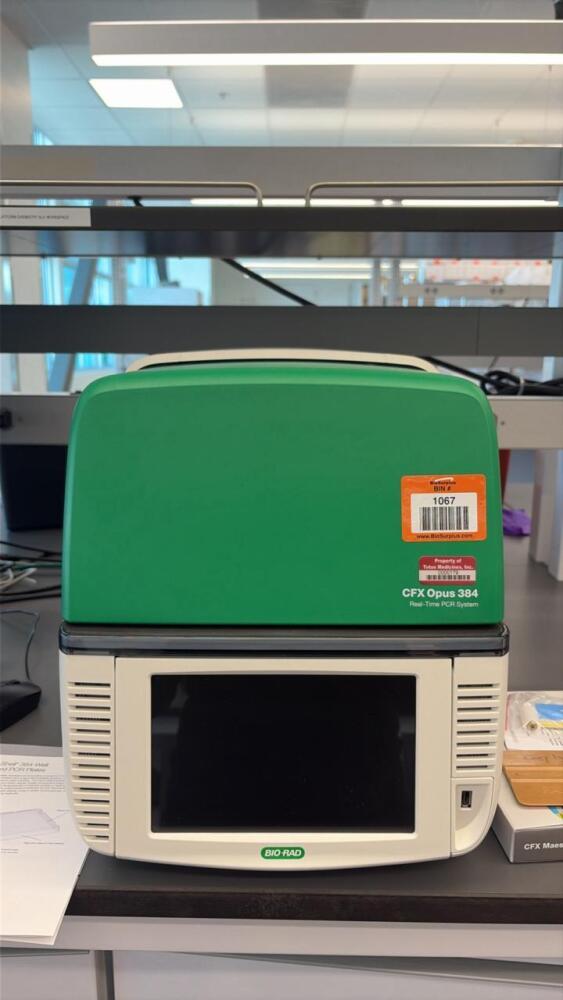

Model: CFX Opus 384
Year: 2023

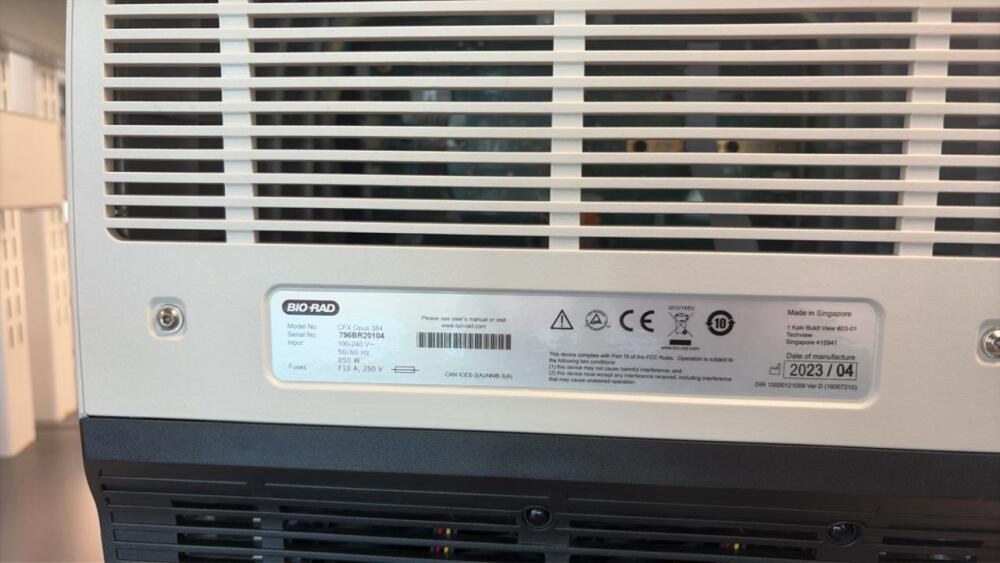

Serial Number: 7968R20104
Date of Manufacture: 2023/04
Capacity (Wells): 384 wells
Detection Channels: 5 channels
Reaction Volume Range: 1–30 µl (5–30 µl recommended)
Sample Throughput: High-throughput
Block Format: Fixed 384-well block
Temperature Uniformity: ±0.3°C (measured 10 sec after reaching target temperature)
Ramp Rate: Up to 2.5°C/sec
Power Requirements: 100–240 V~, 50/60 Hz, 850 W, F10 A, 250 V
Physical Dimensions (W x D x H): 13 x 22 x 14 in. (330 x 560 x 360 mm)
Weight: 48 lb (22 kg)
