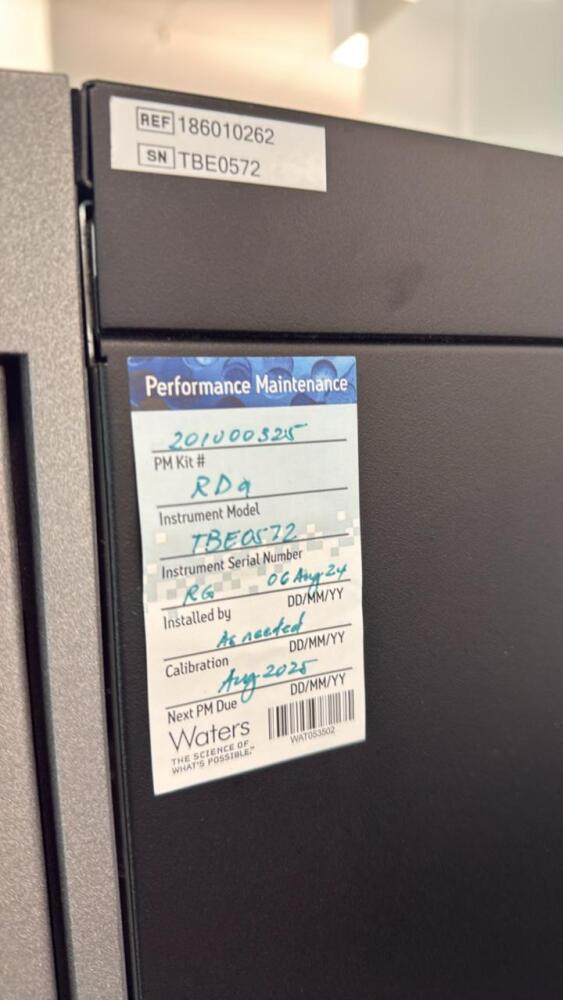

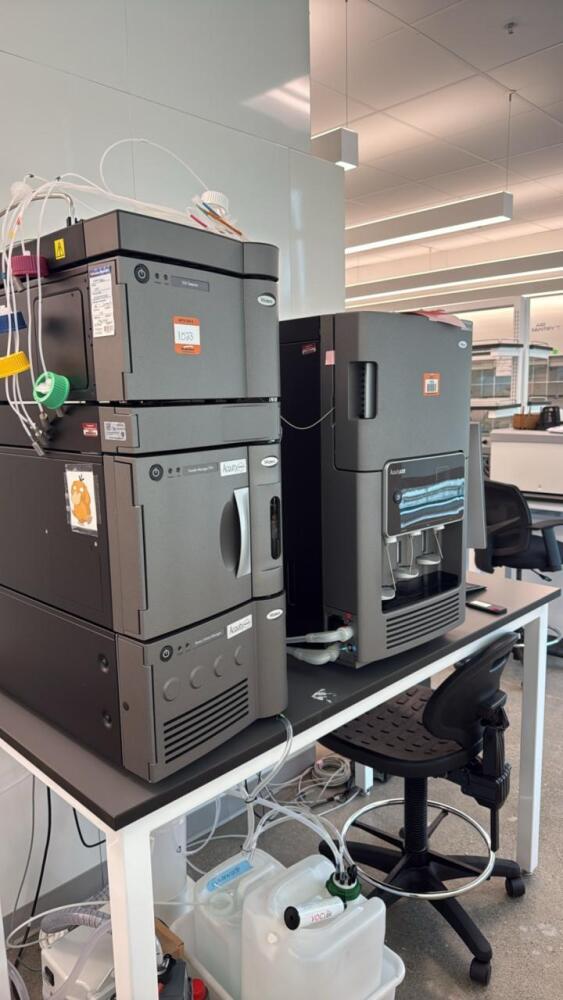

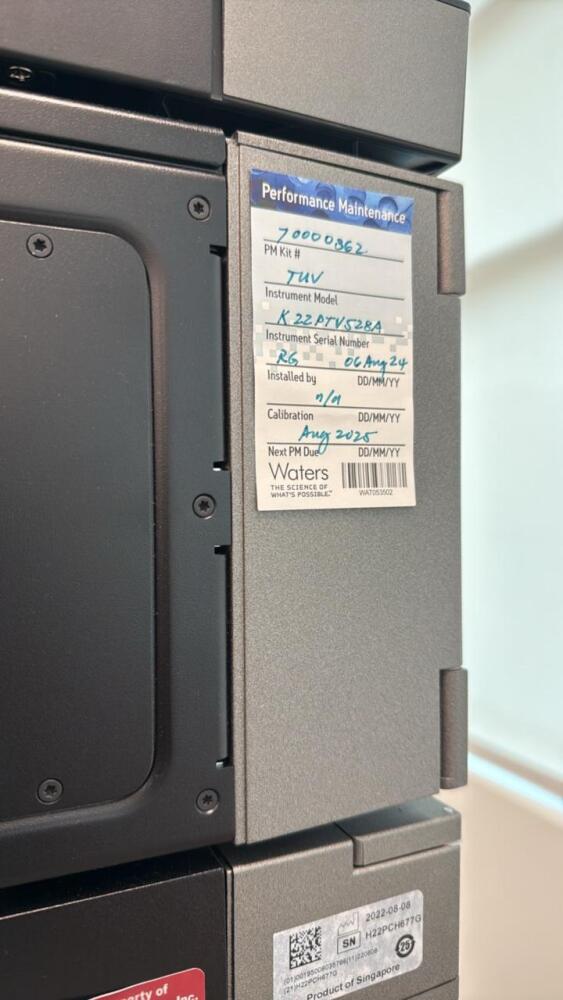

Waters Acquity Premier UPLC System featuring TUV Detector, Binary Solvent Manager, FTN Sample Manager, and BioAccord System with workstation. Includes serial numbers H22PCH677G, H22PBS794G, and TBE0572. Manufactured in Singapore on 2022-08-08. Power requirements: 100-240V, 360-640 VA. Last calibration August 2023, next due August 2025. Accessories: computer, monitor, keyboard, tubing, and power cords.
Category: Ultra Performance Liquid Chromatography (UPLC) System
Make: Waters

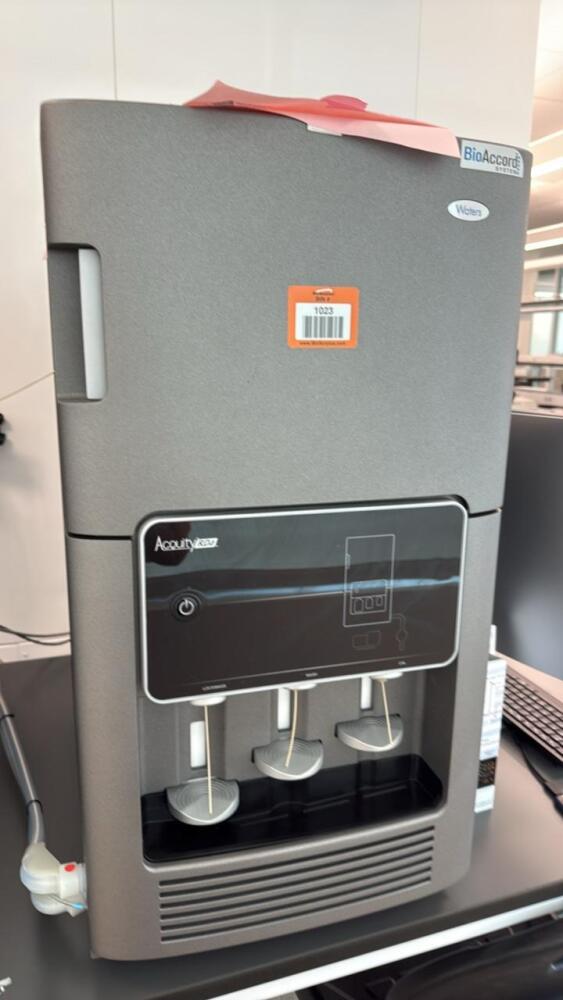

Model: Acquity Premier / BioAccord System
Year: 2022-08-08

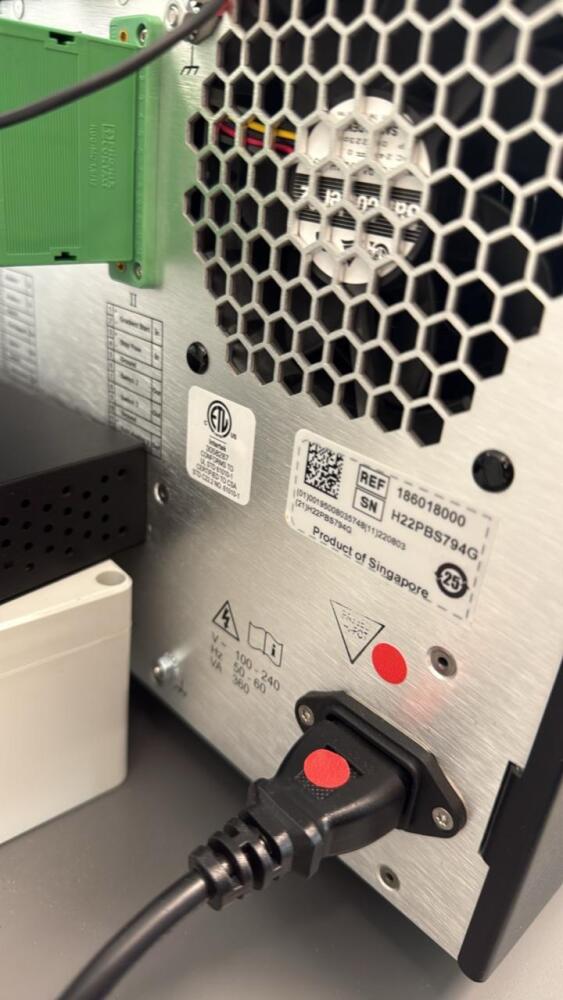

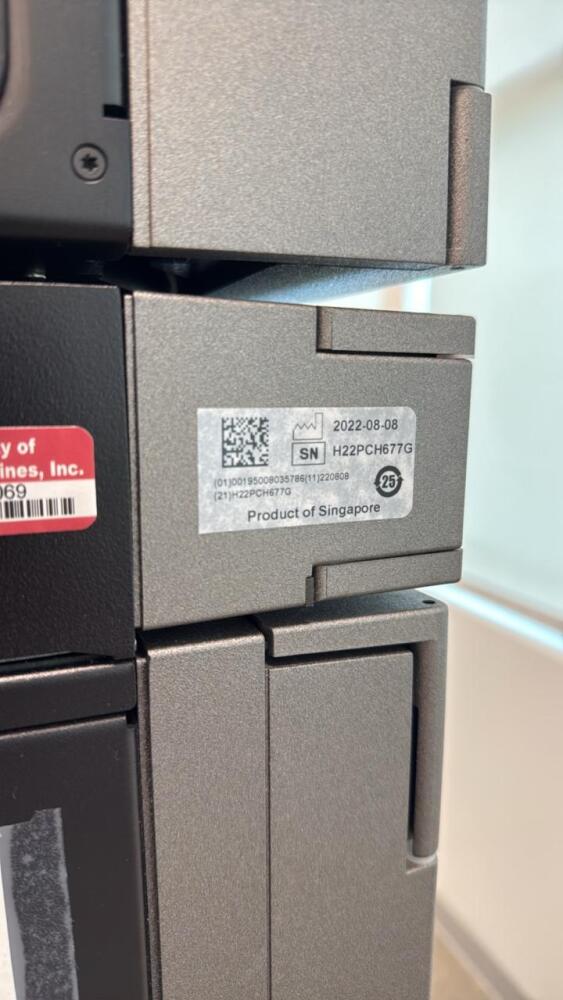

Serial Number: H22PCH677G, H22PBS794G, TBE0572

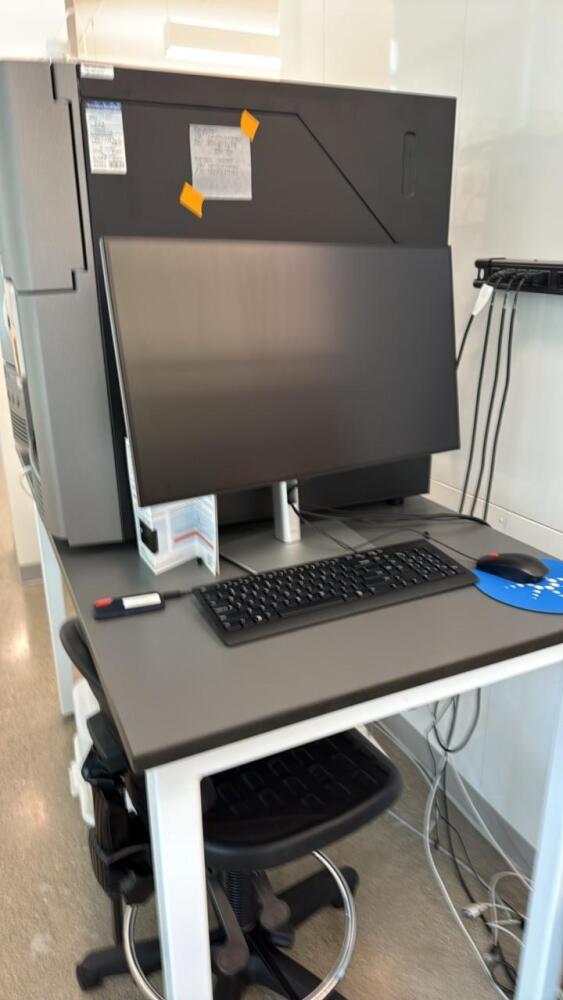

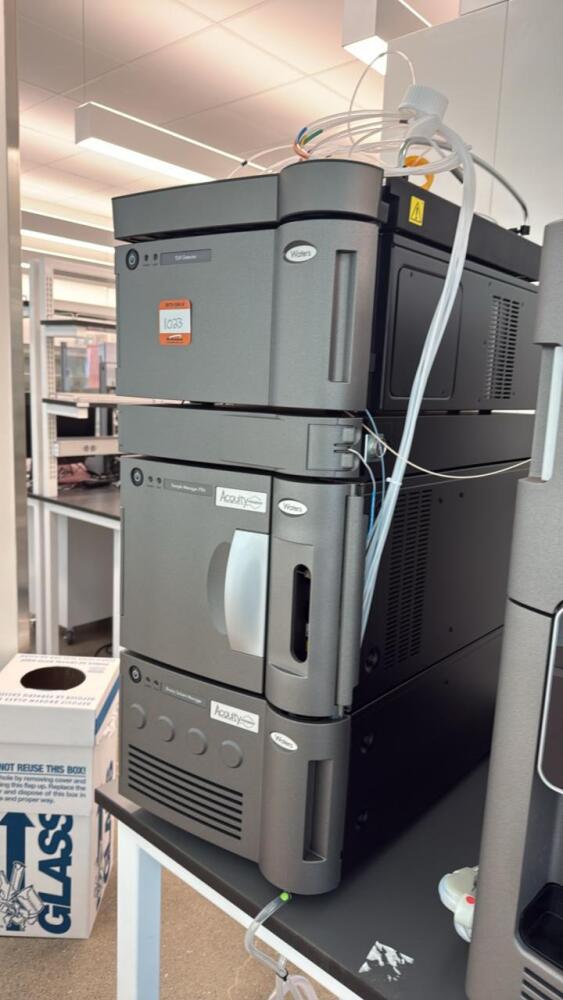

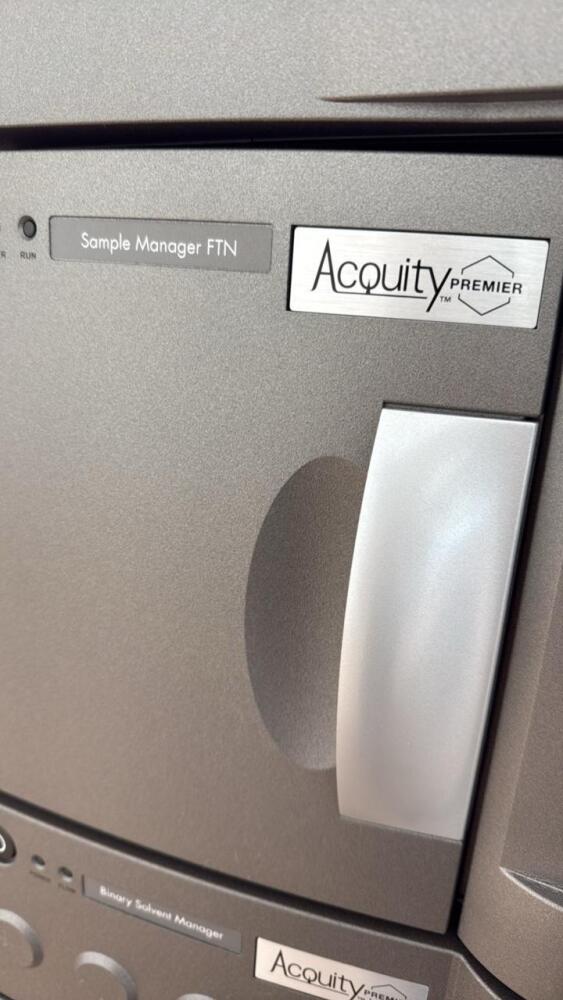

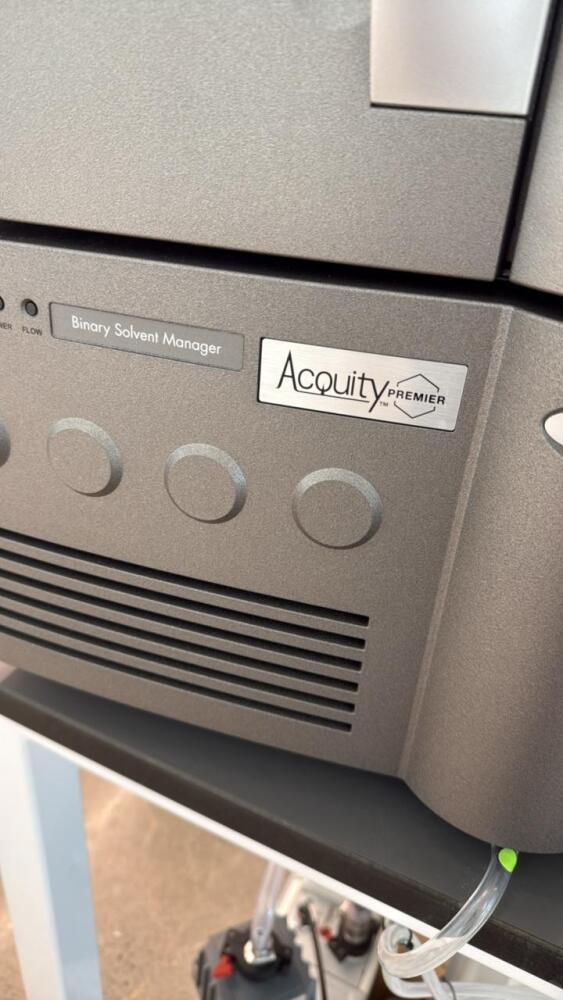

Main Modules Included: Binary Solvent Manager, Sample Manager FTN, TUV Detector, Computer workstation with monitor, keyboard
Application/Intended Use: Analytical chemistry & proteomics; UPLC separations

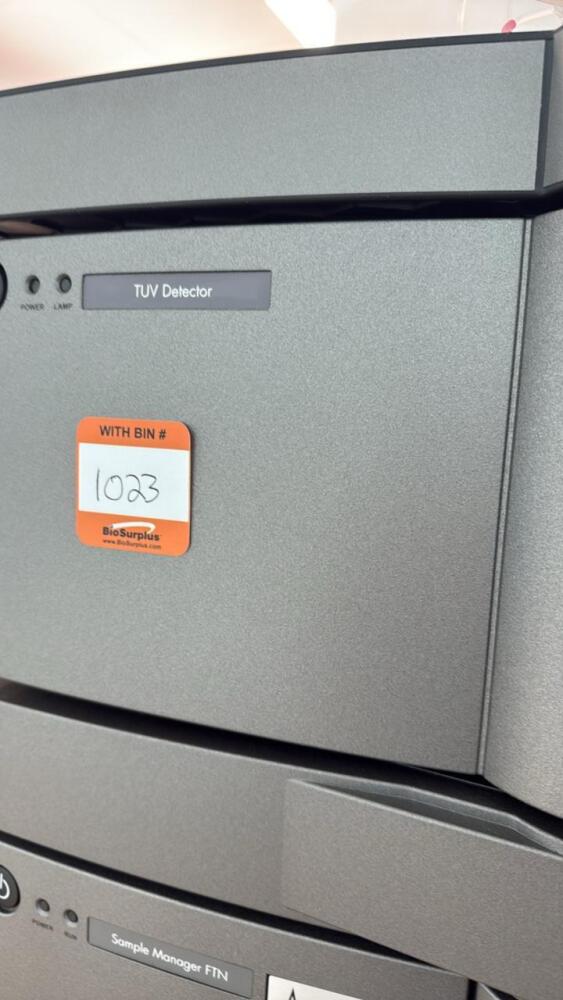

Detector Type & Specs: TUV (Tunable UV) Detector; 190-700 nm typical range
Maximum Pressure: Up to 15,000 psi (1,034 bar)
Flow Rate Range: 0.001 to 2.0 mL/min
Injection Volume: 0.1 - 50 µL
Sample Capacity: Up to 192 samples (2 x 96-well plates) or 22 vials

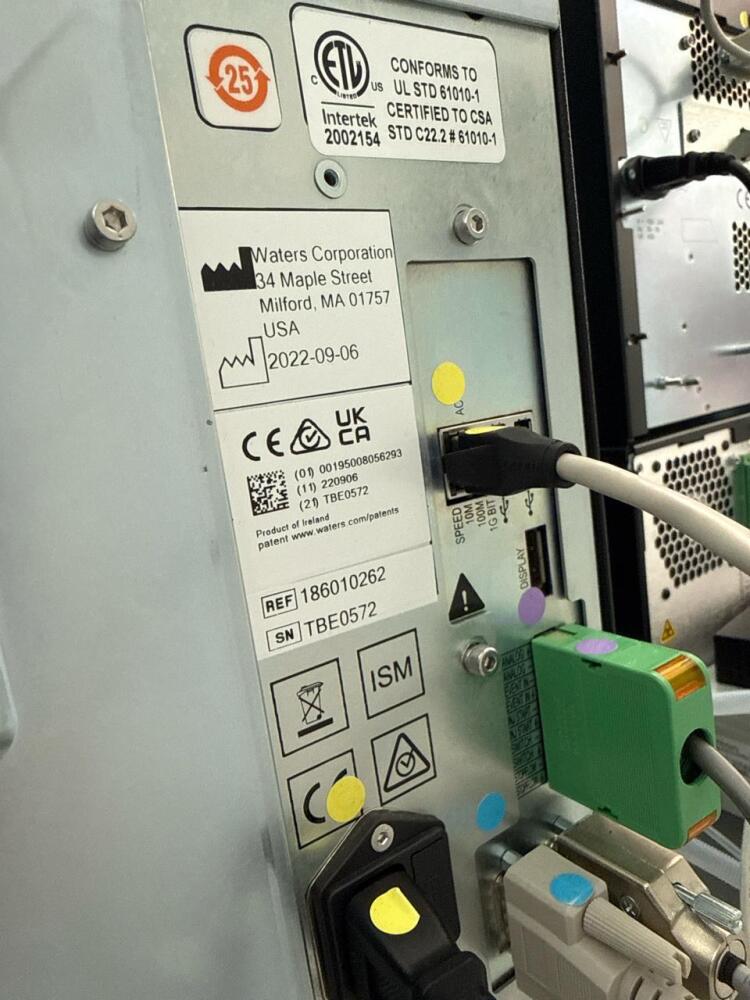

Power Requirements: 100-240V, 50-60Hz, 360-640 VA
Dimensions (W x D x H): Approx. 23.2 x 17.7 x 29.5 in (59 x 45 x 75 cm)
Weight: Approx. 154 lbs (70 kg)
